How to Choose Baffle Bulk Bags for Efficient Pallet Storage and Container Loading
FIBC selection guide
Choose a baffle bulk bag when a square, stable load matters to the way you store and move product.
A practical guide for Australian operations handling free-flowing dry bulk materials. Learn what internal baffles change, how to compare a spout-top/spout-bottom format, and the safety checks that still apply before every lift.
Make the decision quickly
Use baffles to manage shape, then specify the bag around the material and handling system.
Baffle panels are internal fabric panels that help a filled flexible intermediate bulk container retain a squarer profile. That can make a real difference where pallet footprint, racking clearances, stacking presentation or container loading are part of the operational problem. It does not replace the need to select the right Safe Working Load, filling system, discharge arrangement or lifting method.
Prioritise pallet geometry
Start with the usable pallet footprint and the space around it, rather than selecting from nominal bag volume alone. A squarer filled profile is useful only if it fits the way your operation stores and moves product.
Confirm the material flow
Spout-top and spout-bottom designs are intended for controlled filling and discharge of suitable free-flowing material. Confirm the product's flow behaviour and the connection to your filling and emptying equipment.
Specify safe handling
Match the bag's stated SWL, loop arrangement and trip rating to the complete lifting process. Equipment, fork spacing, travel conditions and the people handling the bag all remain part of the decision.
The important distinction
Internal baffles improve shape retention. They do not increase the bag’s Safe Working Load.
A 5:1 safety factor does not mean a bag can be loaded to five times its SWL. The SWL shown for the specific bag remains the maximum working load. Pacific Packaging Australia’s baffle products featured here are specified as single-trip FIBCs, so a used bag must not be treated as automatically suitable for reuse.
Inspect the bag, seams and lifting loops before use. Lift with all four loops simultaneously using rated equipment, and follow the product instructions and site procedures.
What baffles do in practice
Reduce bulging at the corners, so the filled bag uses its space more predictably.
Conventional FIBCs can round outward as they are filled. In a baffle design, internal panels support the sides and help guide the contents into a more cubic shape. The benefit is operational, not cosmetic, a more consistent footprint can simplify the conversation between filling point, pallet, storage location and freight plan.
That is particularly useful when several filled bags are being staged together or when a site needs a clearer, more repeatable storage layout. It can also support more efficient use of container and warehouse space, provided the completed load is still assessed for safe placement, access and stability.
Selecting bag height
Choose the vertical format around your real clearance, not a target fill weight.
The 140 cm, 160 cm, 180 cm and 200 cm formats above share the same 105 × 105 cm internal base, but the height affects where the filled bag can be used. Taller bags may suit a process that needs greater vertical volume, while a shorter format can be easier to accommodate below equipment, within a storage bay or under a lifting attachment. Neither is automatically the better choice.
Start by mapping the practical envelope. Measure the pallet, bag height at the intended fill level, top-spout clearance, loop free height, forklift or hoist attachment, doorways and the final storage position. Then allow for the fact that the finished profile depends on the actual material and filling conditions. A paper calculation is useful, but it should be followed by a controlled test fill.
For multi-stage operations, include every transition. A bag that clears the filling point but does not fit the staging bay, discharge frame or transport loading arrangement will interrupt the workflow later, when the product is already in the bag.
Live baffle bag formats
Compare height and SWL as separate inputs to the selection.
The products below all use a 105 × 105 cm internal base and a spout-top/spout-bottom baffle configuration. Their heights and stated SWLs differ. Choose only after confirming the filled product, handling equipment and site arrangement are suitable.

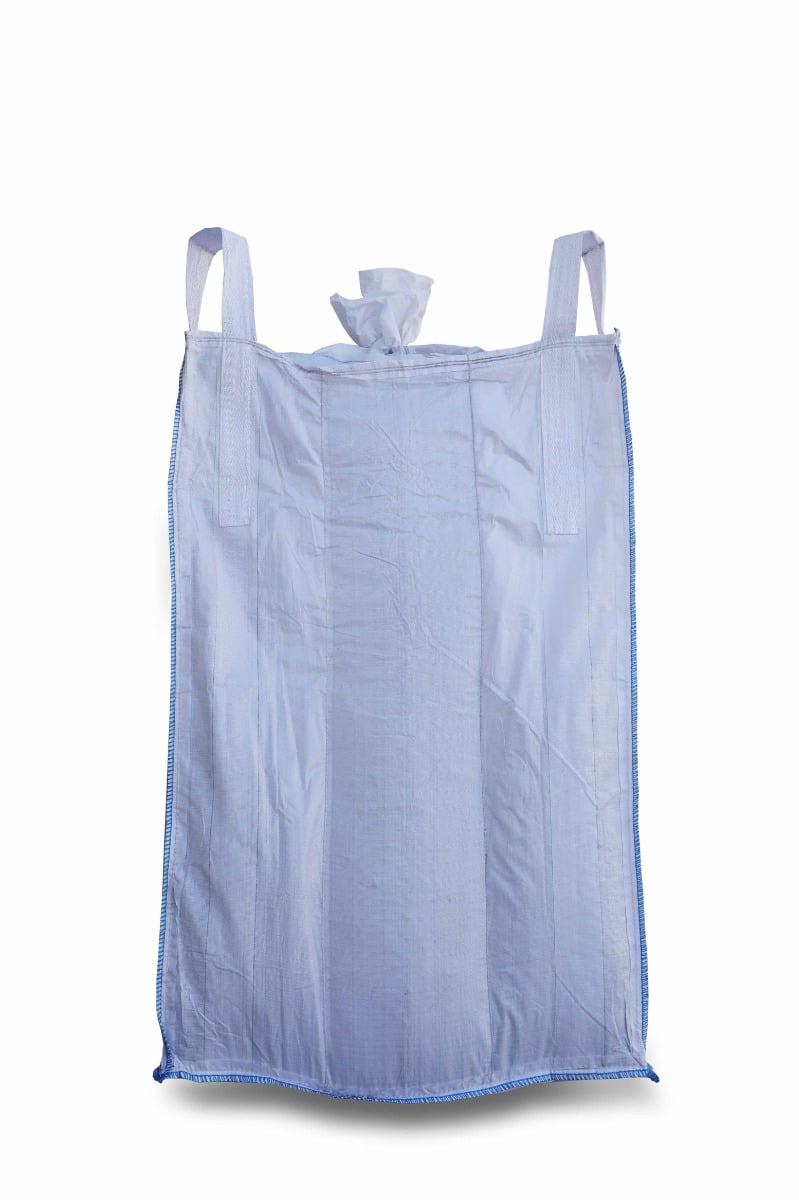

105 × 105 × 140 cm
1.20 Tonne baffle bulk bag
1200 kg SWL · single tripSpout top and bottom, 40 × 50 cm spouts, four cross-corner loops and an A4 document pocket.
View 140 cm bag
105 × 105 × 160 cm
1.20 Tonne baffle bulk bag
1200 kg SWL · single tripSpout top and bottom, 40 × 50 cm spouts, four cross-corner loops and an A4 document pocket.
View 160 cm bag
105 × 105 × 180 cm
1.25 Tonne baffle bulk bag
1250 kg SWL · single tripSpout top and bottom, 40 × 50 cm spouts, four cross-corner loops and an A4 document pocket.
View 180 cm bag
105 × 105 × 200 cm
1.25 Tonne baffle bulk bag
1250 kg SWL · single tripSpout top and bottom, 40 × 50 cm spouts, four cross-corner loops and an A4 document pocket.
View 200 cm bagBrowse the baffle bulk bag collection for current formats and product details.
Before you place an order
Work through the hand-off points in your bulk-material process.
A baffle bag is part of a system. A good procurement brief gives the supplier and the site team enough detail to test suitability before the bag arrives at the filling station.
- Material: confirm the product is dry and free-flowing enough for the proposed filling and discharge arrangement.
- Fill: check the spout dimensions, attachment method and required clearance at the filling point.
- Storage: verify the filled bag height, usable pallet footprint, aisle access and any racking limitations.
- Lift: confirm the lifting equipment is rated and configured for the actual bag, including use of all four lifting loops.
- Discharge: establish how the bottom spout will be accessed, controlled and re-secured during the process.
- Transport: plan how completed bags will be restrained and handled in line with your freight and site requirements.
Shape versus specification
Choose the format that solves the operational constraint you actually have.
Choose a baffle bag if...
Your filled bag needs to retain a more square profile for pallet presentation, staging, storage layout or container-space planning.
Check the fill and discharge system if...
You need controlled material movement. A spout arrangement must suit both the product and the equipment, not merely look correct on the product drawing.
Escalate the specification if...
The material is difficult flowing, sensitive, unusually dense, or the site has special handling, liner, hygiene or regulatory requirements. The bag configuration may need to change.
Avoid the common shortcuts
Four selection mistakes that can undermine a well-designed baffle bag.
Buying on bag height alone
A taller bag does not establish how much mass it can safely carry. The material's density and the bag's stated SWL must be considered separately.
Treating baffles as a safety upgrade
Baffles help control the filled shape. They do not authorise a higher load, change the trip rating or remove the need for sound lifting practices.
Skipping the equipment check
Top and bottom spouts need to work with the actual filling and discharge points. Confirm diameter, access, closure steps and clearance before the first delivery.
Assuming reuse is permitted
Single-trip FIBCs are not multi-trip bags. A bag appearing intact does not change the product’s intended trip rating.
Frequently asked questions
Questions worth answering before a bulk bag becomes part of the workflow.
What is the main benefit of a baffle bulk bag?
Internal baffles help the bag retain a squarer filled shape. This can improve pallet fit, stacking presentation and the predictability of the storage footprint for suitable bulk materials.
Does a baffle bulk bag hold more weight than a standard bag?
Not automatically. The maximum working load is the specific bag’s stated SWL. Baffle construction is about shape retention, while SWL, material characteristics and the total handling system determine the safe application.
Can I reuse a single-trip baffle FIBC?
No. The products in this guide are identified as single-trip bags. Do not assume a bag can be reused because it looks undamaged. Follow the trip rating and product instructions for the exact FIBC.
Why are spout-top/spout-bottom baffle bags useful?
They provide a defined format for filling and discharge where the material and equipment are suitable. Confirm spout dimensions, connection method, product flow and access at both ends of the process.
How should a filled baffle bag be lifted?
Inspect the bag and loops, use rated lifting equipment, and lift all four loops simultaneously as specified for the product. Never exceed the stated SWL, and follow your site’s safe-work procedures.
Your next step
Start with the material, pallet and lifting plan, then choose the baffle bag that fits the complete job.
Review current baffle bulk bag formats, or speak with Pacific Packaging Australia about a configuration suited to your handling process.
Browse baffle bulk bags
