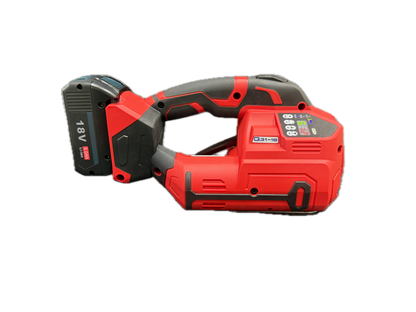

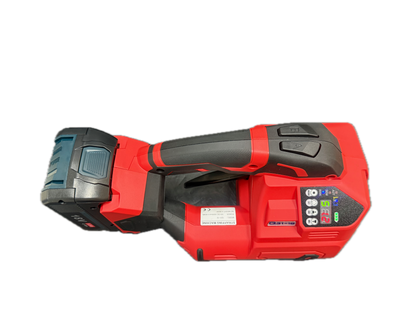

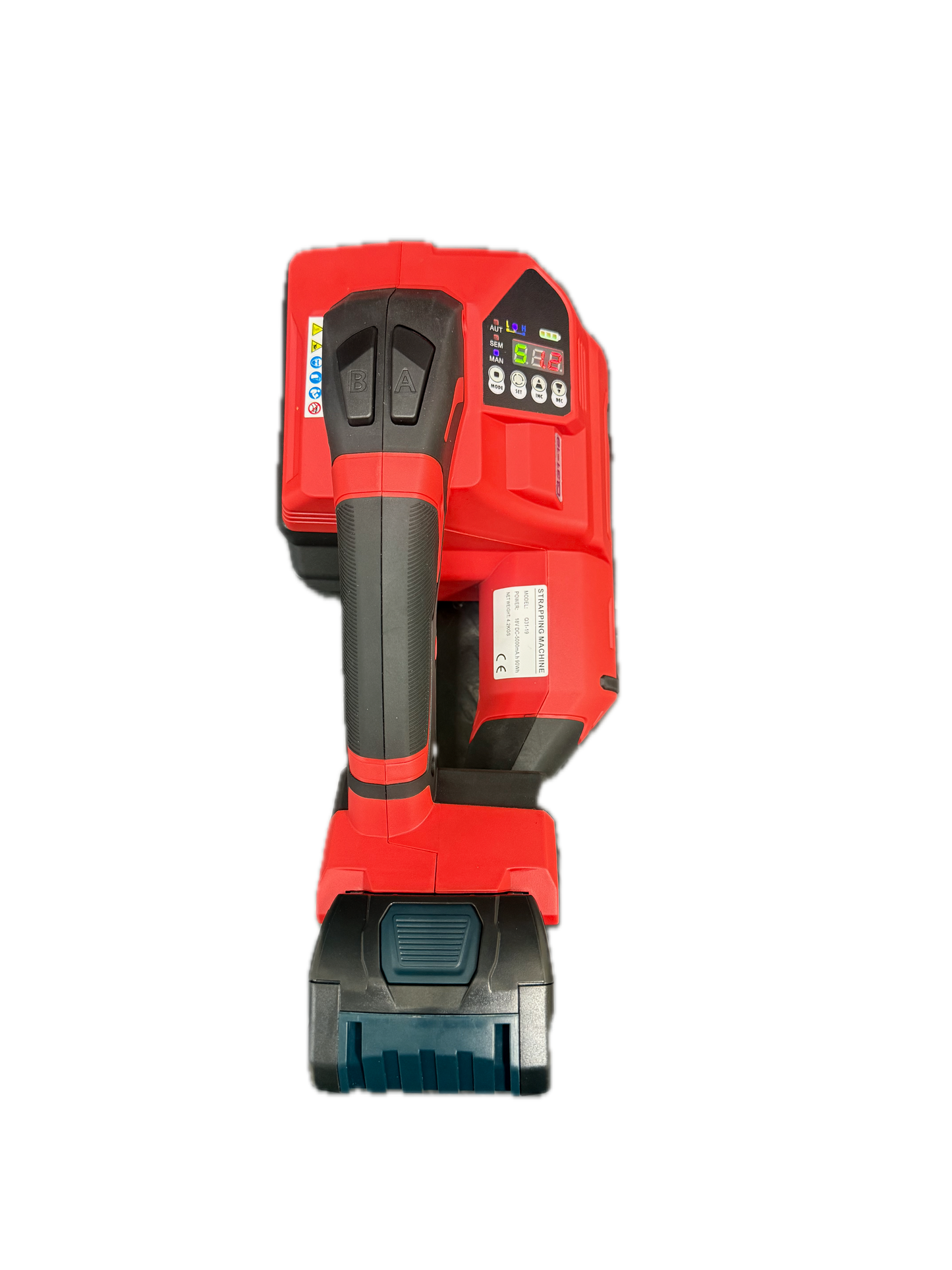

Battery Powered Automatic Strapping Machine for 16–19mm PP & PET Strapping – QC31-19

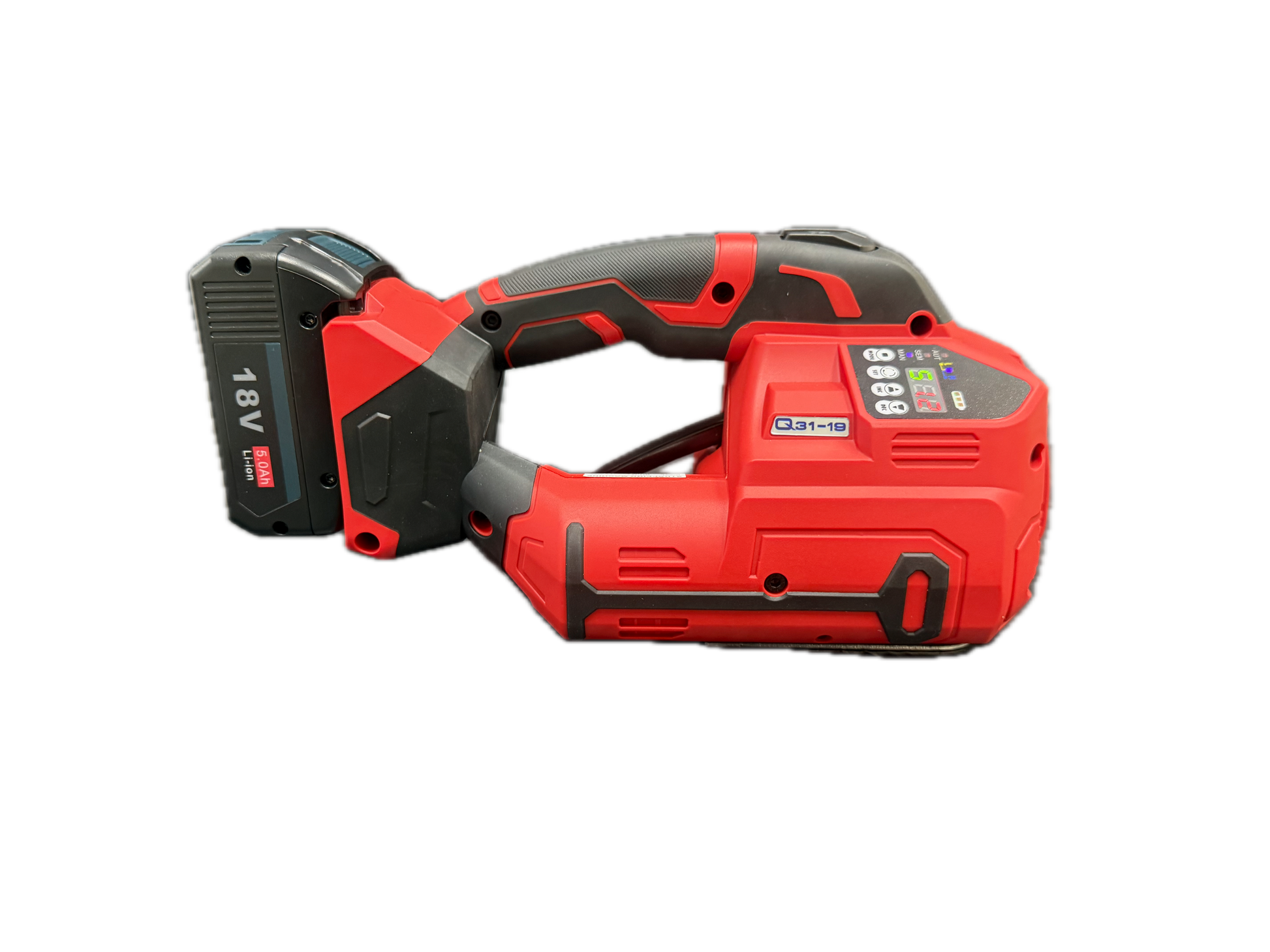

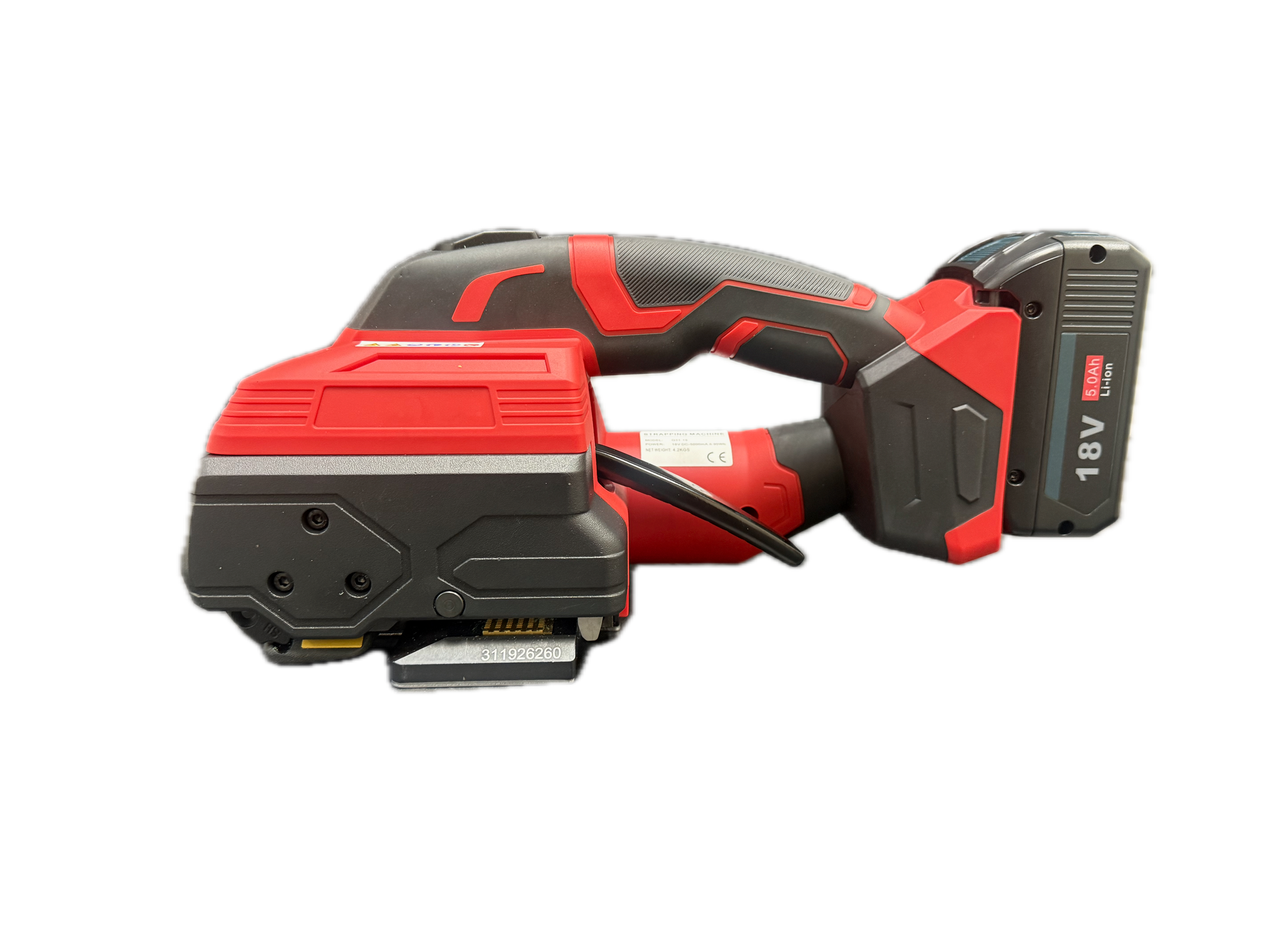

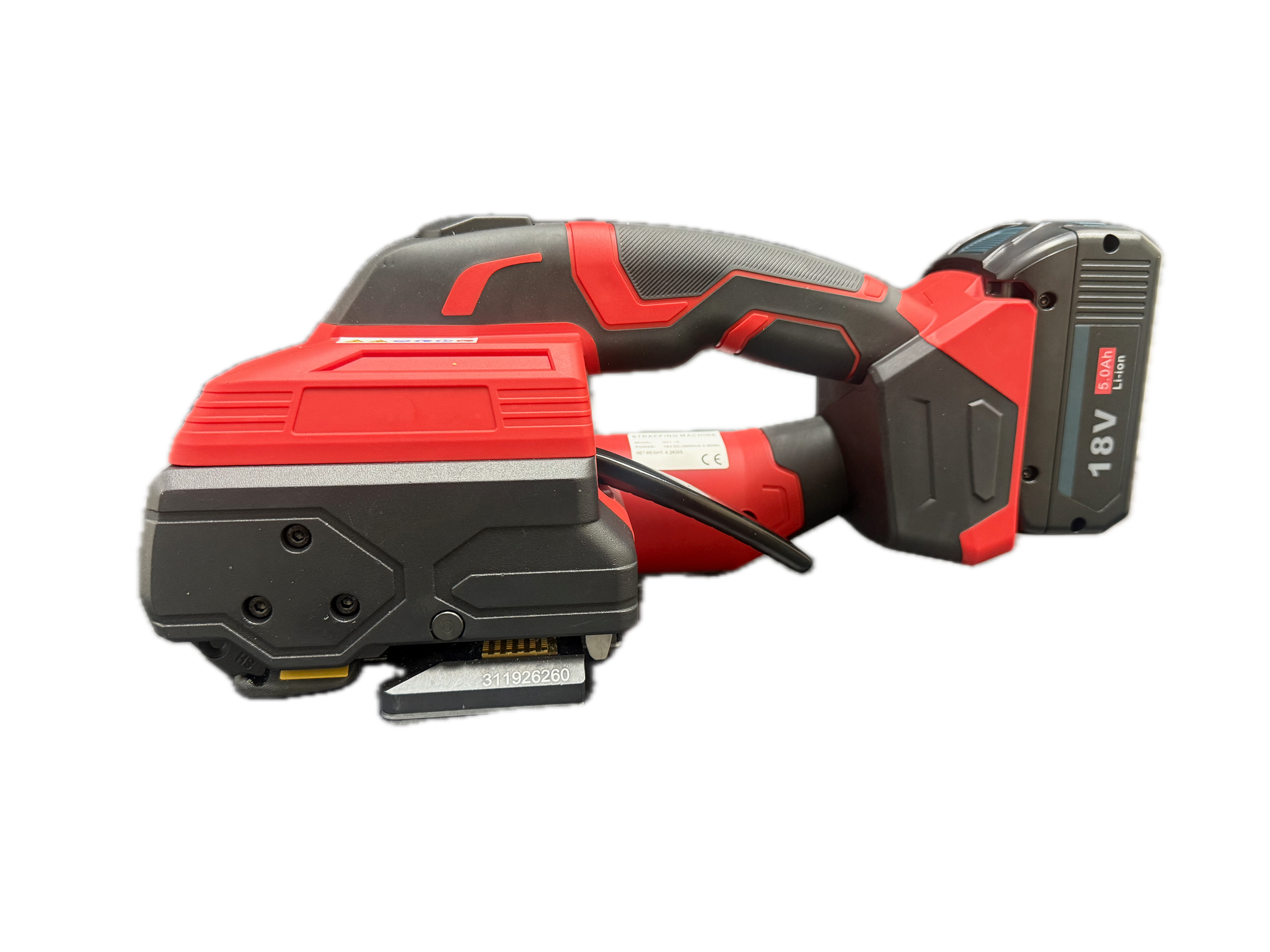

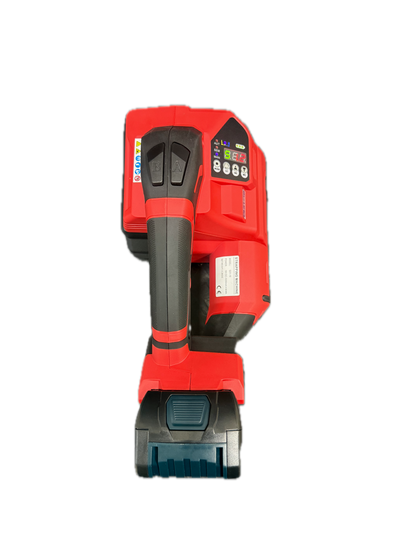

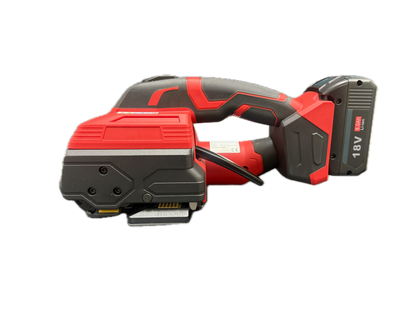

The QC31-19 Battery Powered Automatic Strapping Machine is a cordless strapping tool designed for fast and consistent tensioning, friction welding and sealing of PP and PET strapping from 16–19mm wide.

Suitable for warehouses, distribution centres, manufacturing operations and other industrial packing applications, the QC31-19 combines the tensioning and sealing process in one portable tool. Adjustable operating modes allow the machine to be configured for different strapping requirements, while the digital control panel provides straightforward adjustment and operation.

Supplied with two 18V 5.0Ah lithium-ion batteries, the machine is well suited to repetitive strapping work where cordless mobility and reduced downtime are important.

Key Features

• Suitable for 16–19mm PP and PET strapping
• Cordless, battery-powered operation
• Two 18V 5.0Ah lithium-ion batteries included
• Fully automatic, semi-automatic and manual operating modes
• Adjustable tension settings for different load and strap requirements
• Normal-mode tension range of 800–3000N
• Soft-mode tension range of 600–2000N
• Tightening speed of 100–200mm/s
• Friction-weld sealing system

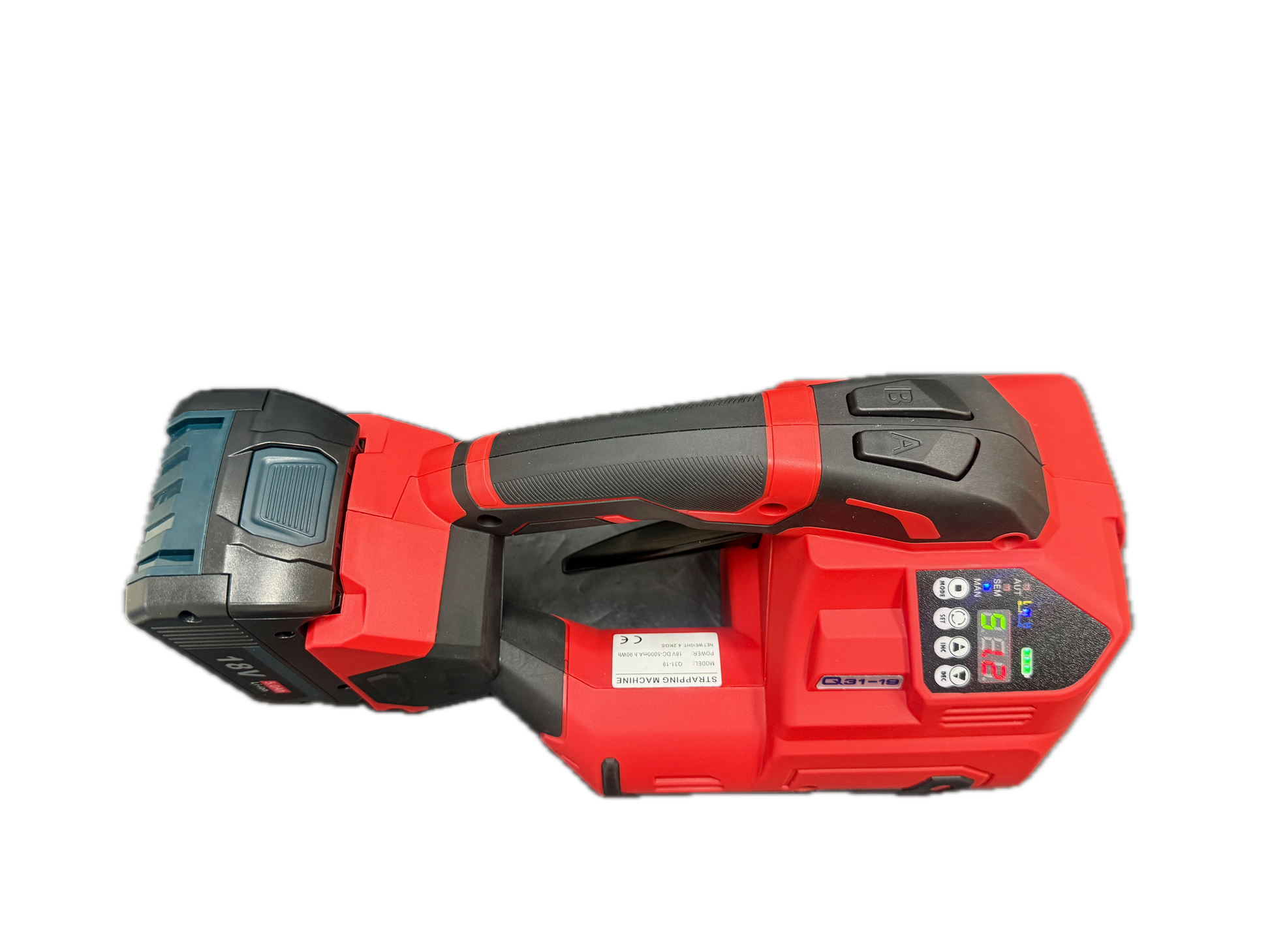

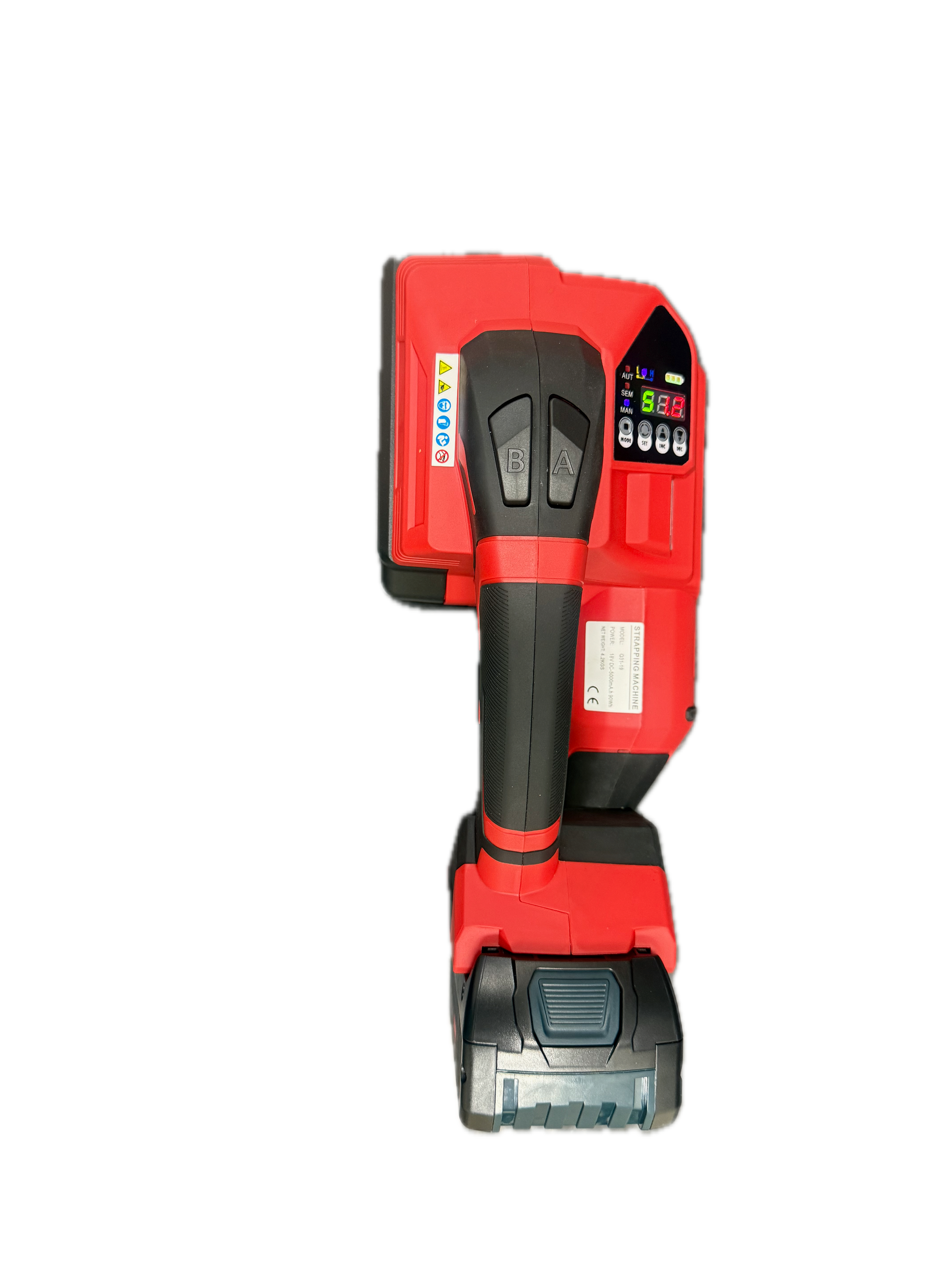

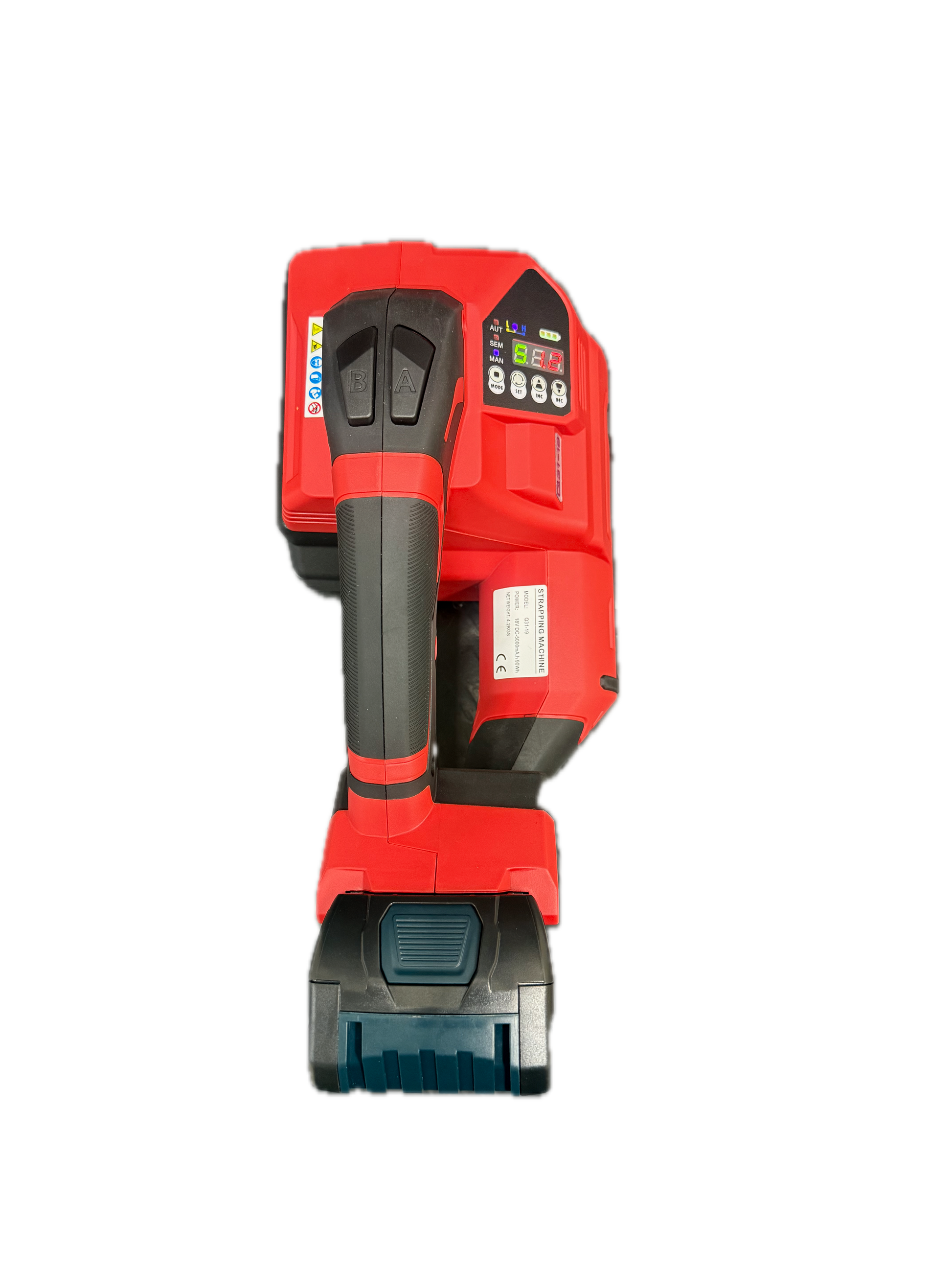

• Digital display with button controls
• Adjustable welding and cooling settings
• Ergonomic handheld design for portable strapping applications
• Approximately 90-minute battery charging time
• Designed for operation in ambient temperatures from 5°C to 45°C

Specifications

Model	QC31-19
Strapping Type	PP / PET
Strap Width	16–19mm
Operating Modes	Automatic / Semi-Automatic / Manual
Normal Tension Range	800–3000N adjustable
Soft Tension Range	600–2000N adjustable
Tightening Speed	100–200mm/s
Welding Strength	Approximately 75–80% of PET strap strength, depending on strap quality
Welding Time	1.1–1.4 seconds, adjustable
Cooling Time	Approximately 2.5 seconds
Control System	Button controls with digital display

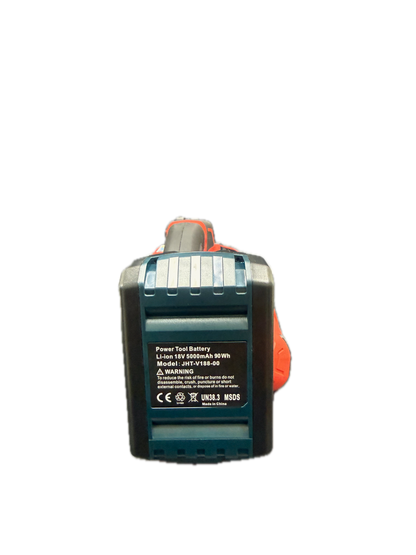

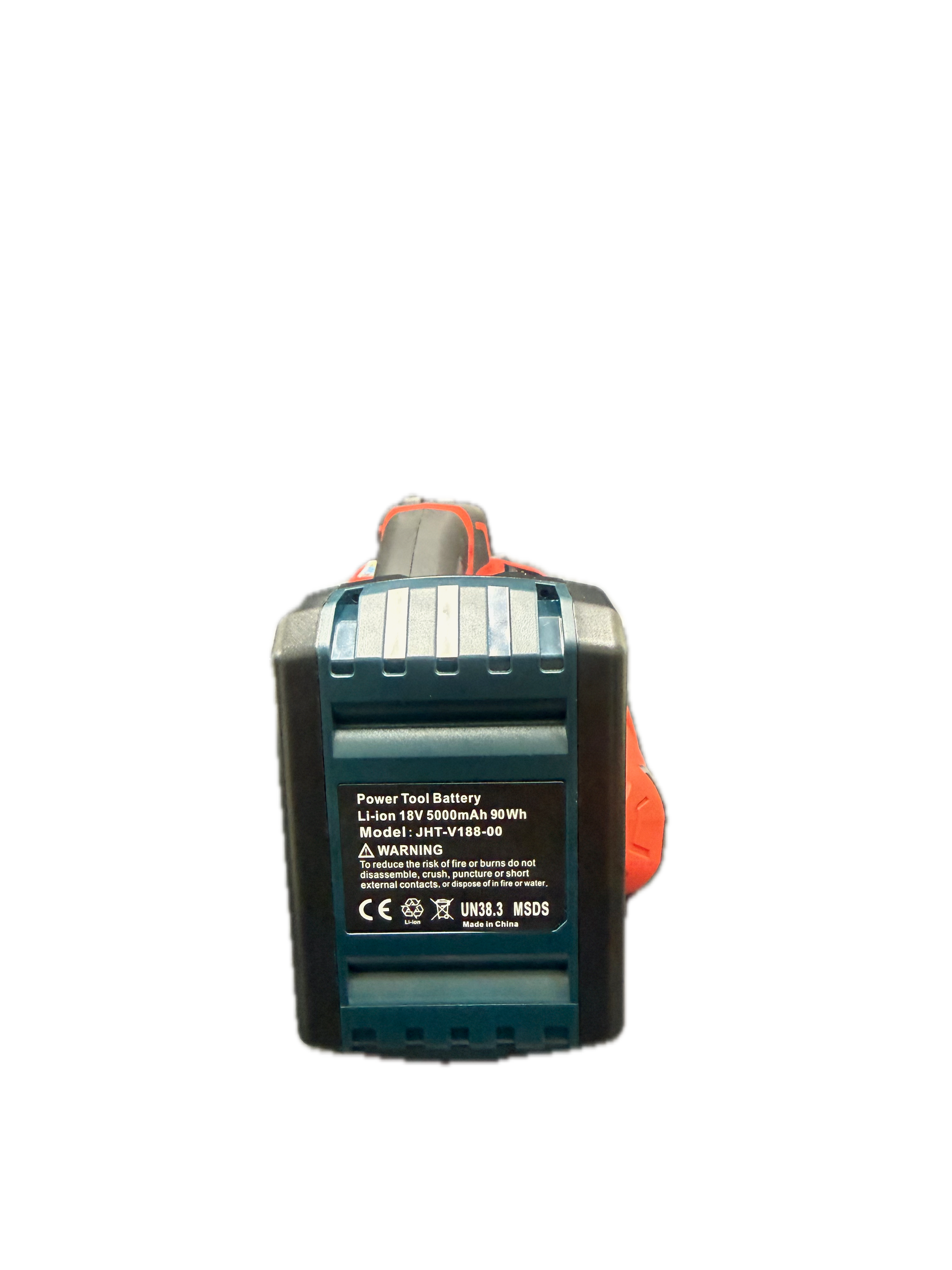

Battery	18V 5.0Ah lithium-ion
Batteries Included	2
Battery Charging Time	Approximately 90 minutes
Charger Input	230V, 50/60Hz, 75W
Charger Output	10.8–18V DC, maximum 3.5A
Working Temperature	5°C–45°C
Recommended Operating Temperature	15°C–20°C
Machine Dimensions	335 × 150 × 145mm
Packing Dimensions	465 × 320 × 200mm

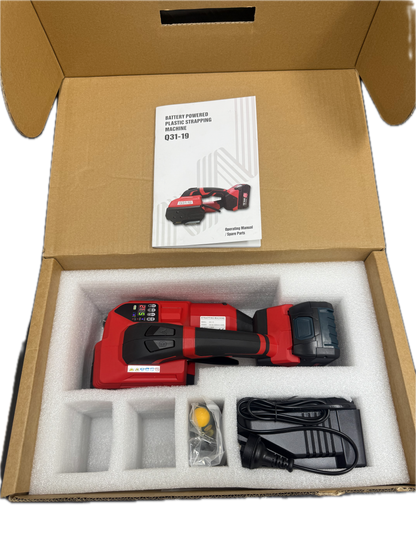

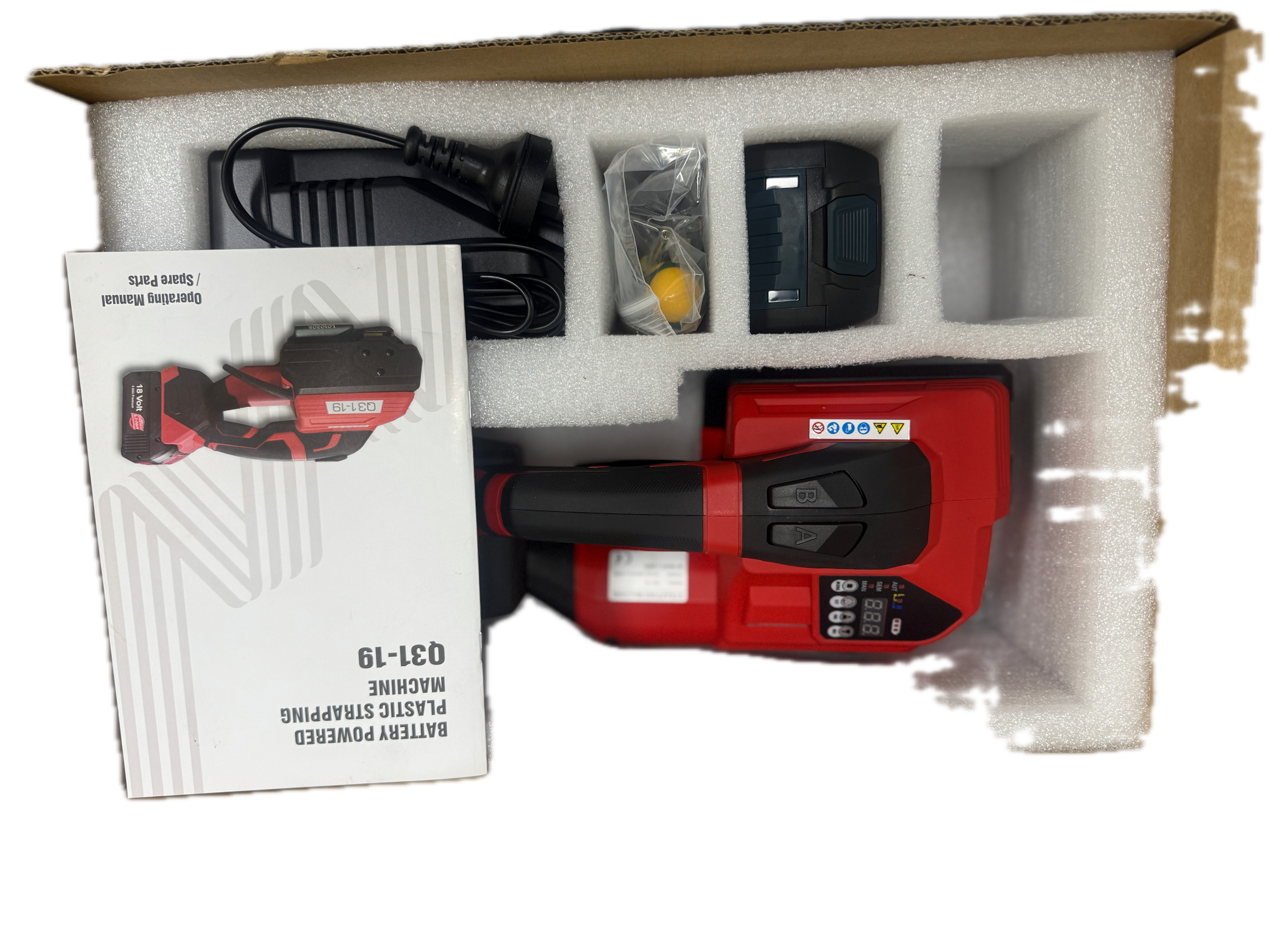

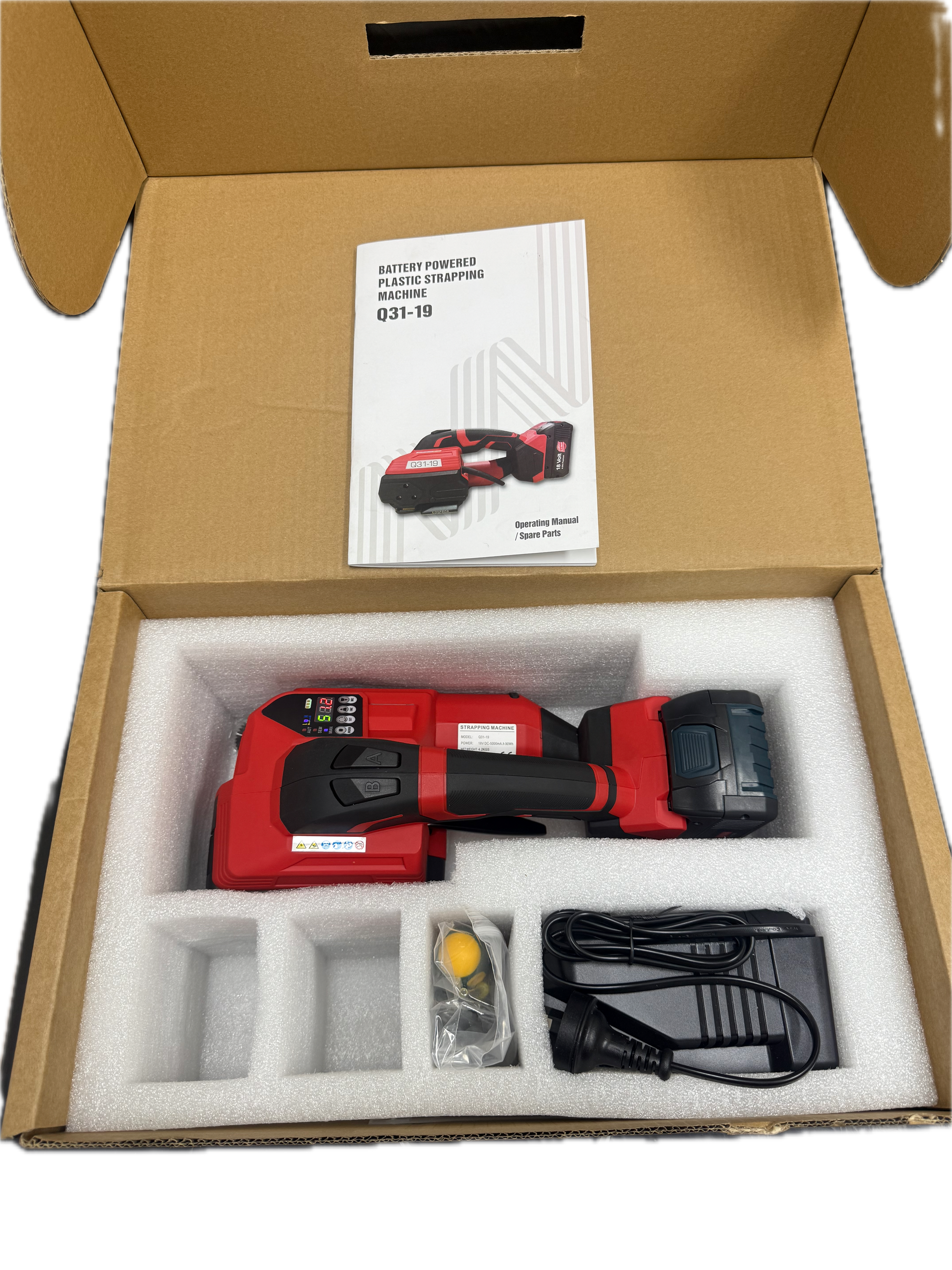

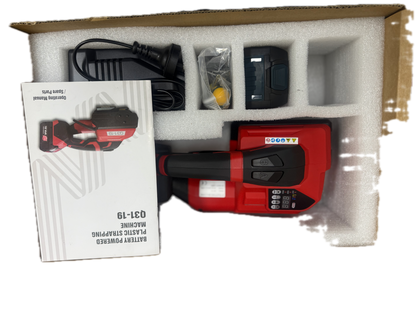

What's Included

• 1 × QC31-19 Battery Powered Strapping Machine
• 2 × 18V 5.0Ah lithium-ion batteries
• 1 × Battery charger
• Operating manual
• Supplied accessories as packed with the machine

Applications

Ideal for securing cartons, palletised goods, building materials, manufactured products and other loads using polypropylene or polyester strapping.

For best results, select the appropriate tension and welding settings for the strap specification and load being secured. Always operate the machine within the recommended strap and tension parameters.
